Features
O 4 CH HDMI input
O 1 CH HDMI output
O HDMI IN/OUT at max 4K@30Hz

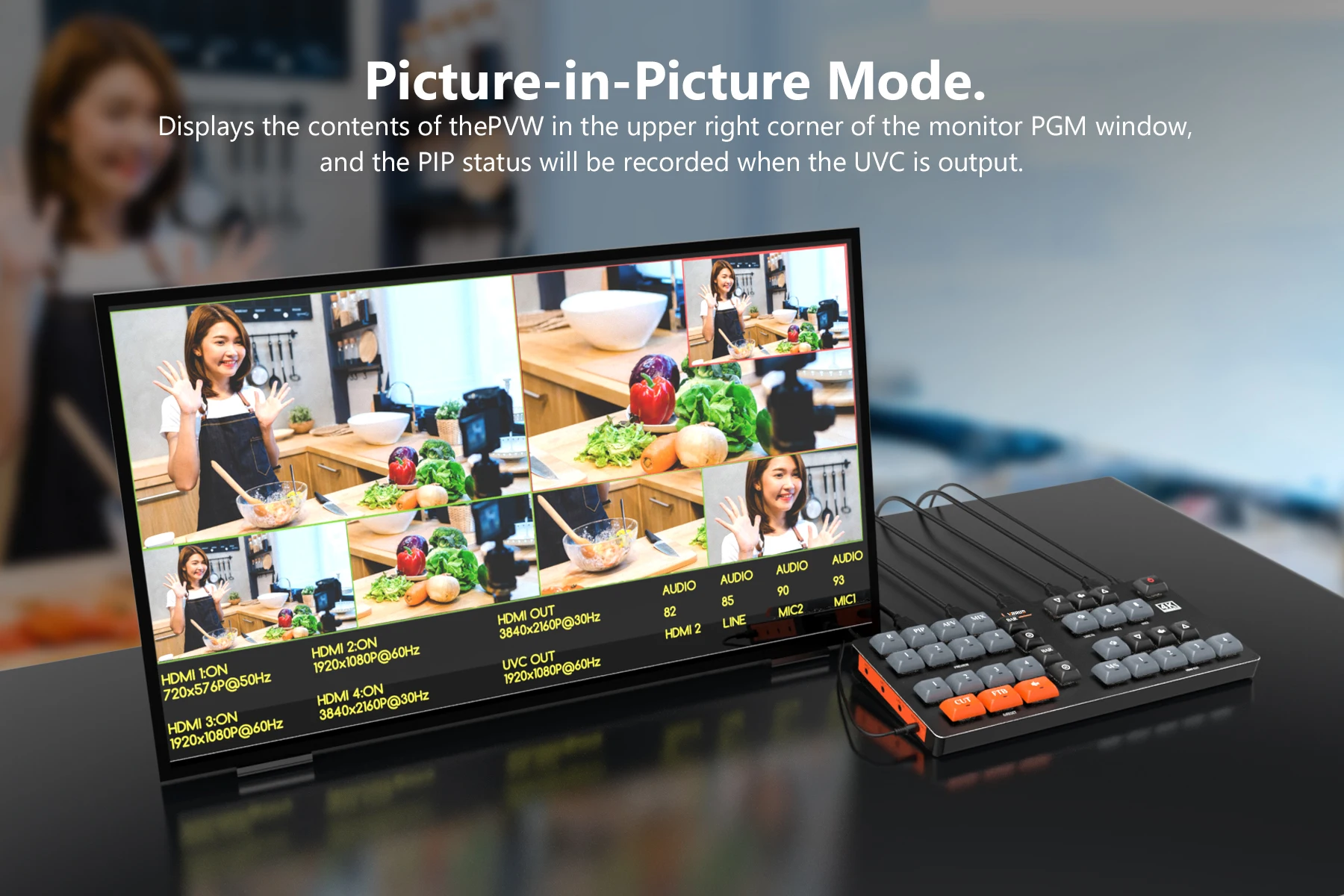

O PIP (Picture in Picture)
O MIC/LINE IN, Audio Mixing /Monitor
O PVW/PGM signal source real-time switch
O Multi PVW switch to single PVW for monitoring
O 4 x USB power supply port out 5V/1.5A
O Plug and play, One-click BAR/STILL
O USB3.0 capture video complying with UVC for live streaming to multi media platform
Excellent Function
Reliable quality and powerful. Please buy with confidence!
The WL100 Video Switcher is a cutting-edge 4K HD directing console designed to meet the demands of modern networks.This advanced system seamlessly integrates an HDMI decoder,built-in format converter,audio processor,and video streaming media processor,enabling seamless integration with various video formats for front-end signal input.
It supports up to four HDMI 4K@30HZ signal inputs and is fully compatible with high-definition video signals such as 1080P,720P,etc.Additionally,it facilitates UVC output video editing for versatile applications including program recording and network broadcasting.With its user-friendly interface,even users without professional expertise can effortlessly perform video switching and audio mixing operations.
Ideal for live performances,course recordings,booth directing,network broadcasting,video conferences,outdoor live productions,sports broadcasts,and educational conferences on live broadcasting;this console also enables on-site editing,re cording,and post-production of videos.

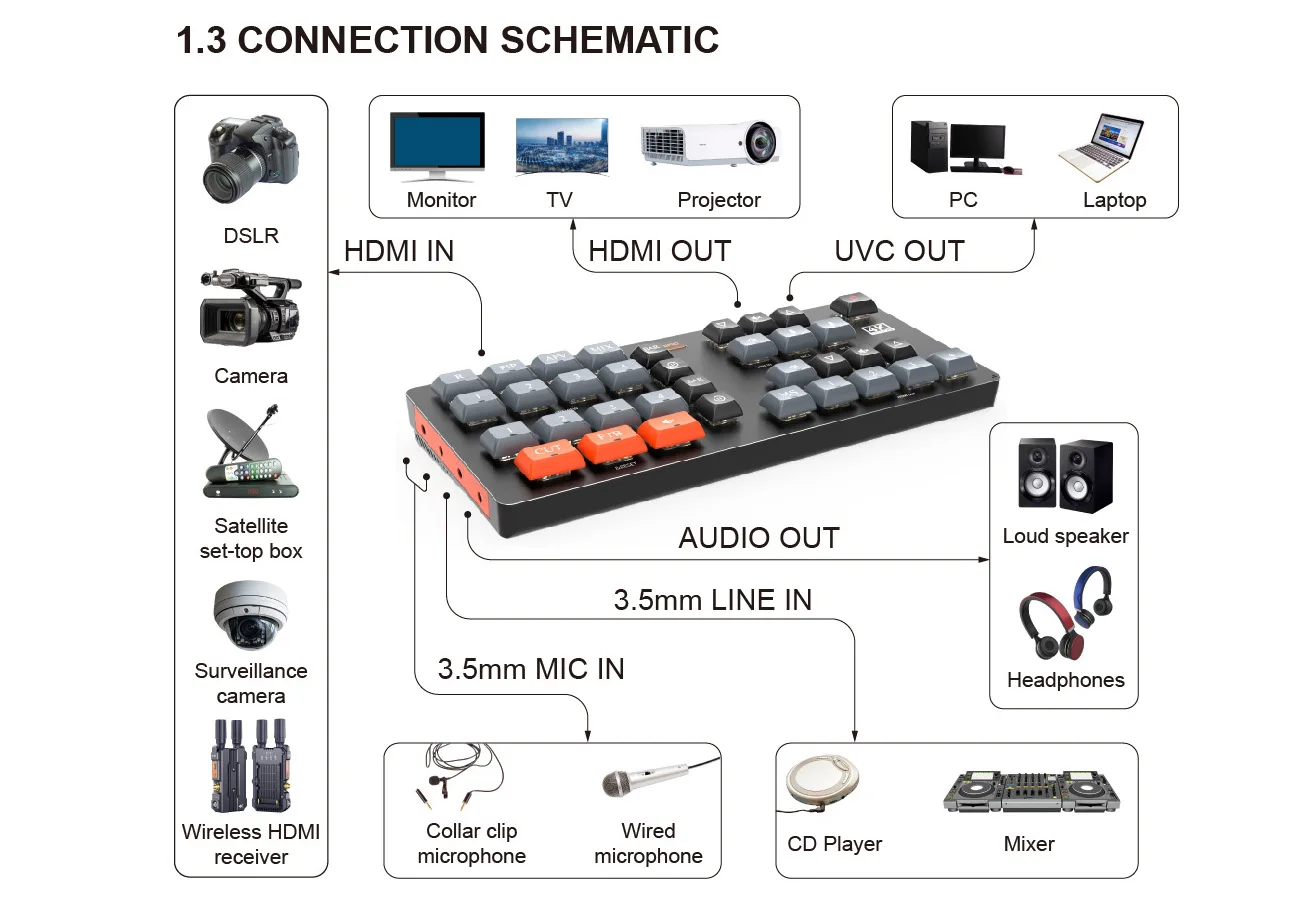

This 4K Live Stream Switcher is equipped with 4 HDMI inputs, 1 HDMI output and 1 USB3.0 output. All HDMI interfaces support 4K/1080p format. You can switch the HDMI output mode 4K/1080p in real time, and you can check the status of each function area in the monitor.
USB 3.0 Social Media Live Stream
The equipped USB3.0 output can realize live streaming on OBS, Youtube, vMix, Facebook, and TikTok, etc. You can connect it to your computer to play PPT , video clips, websites, or game consoles in real time.

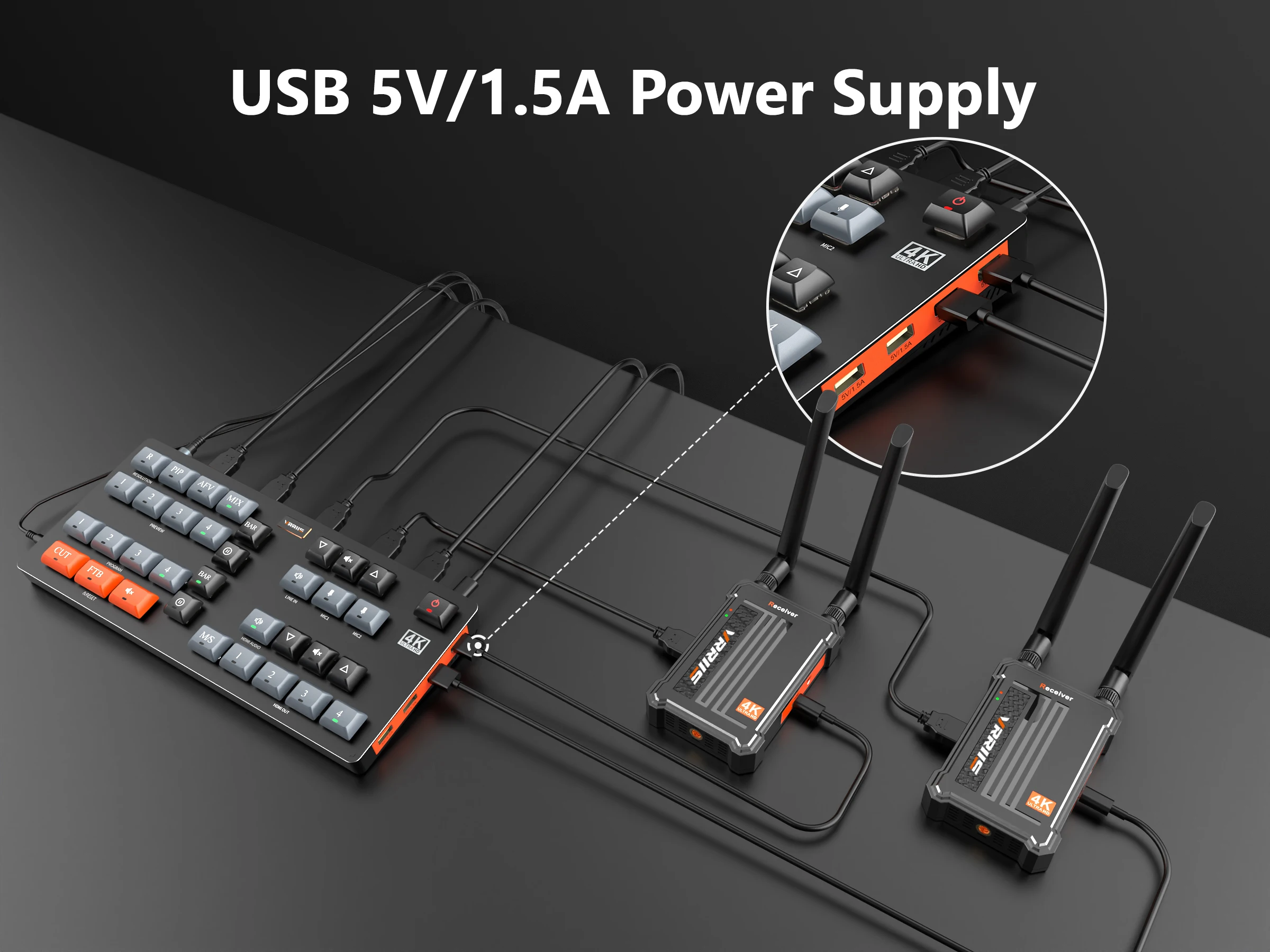

With Various USB Electronic Devices
This HDMI live streaming switcher is equipped with 4 x USB 5V/1.5A power supply ports, it can be used to charge peripheral electronic devices such as wireless HDMI transmitter and receiver, wireless video transmission system and so on. It's convenient for multi-device integration of live streaming system.

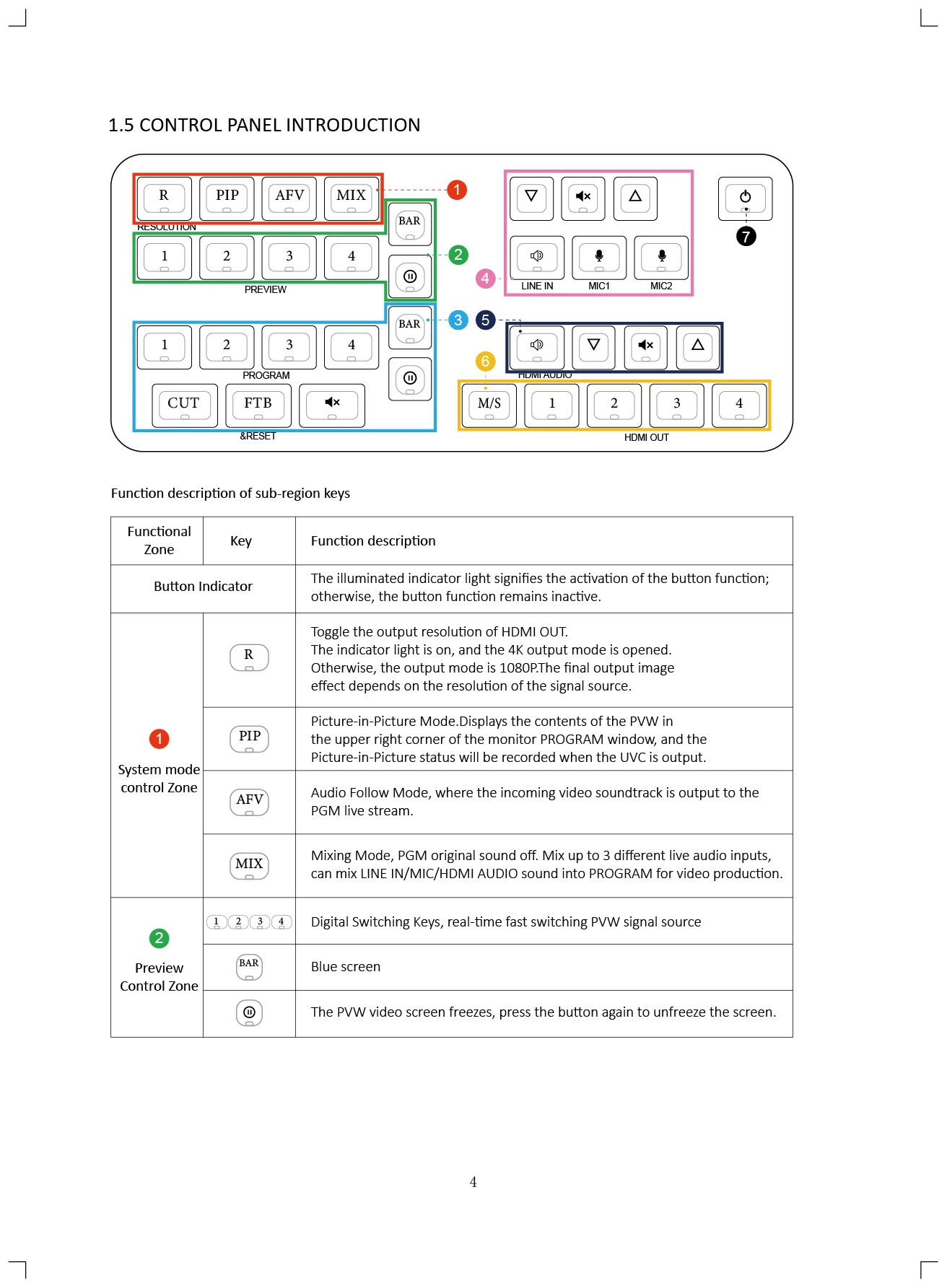

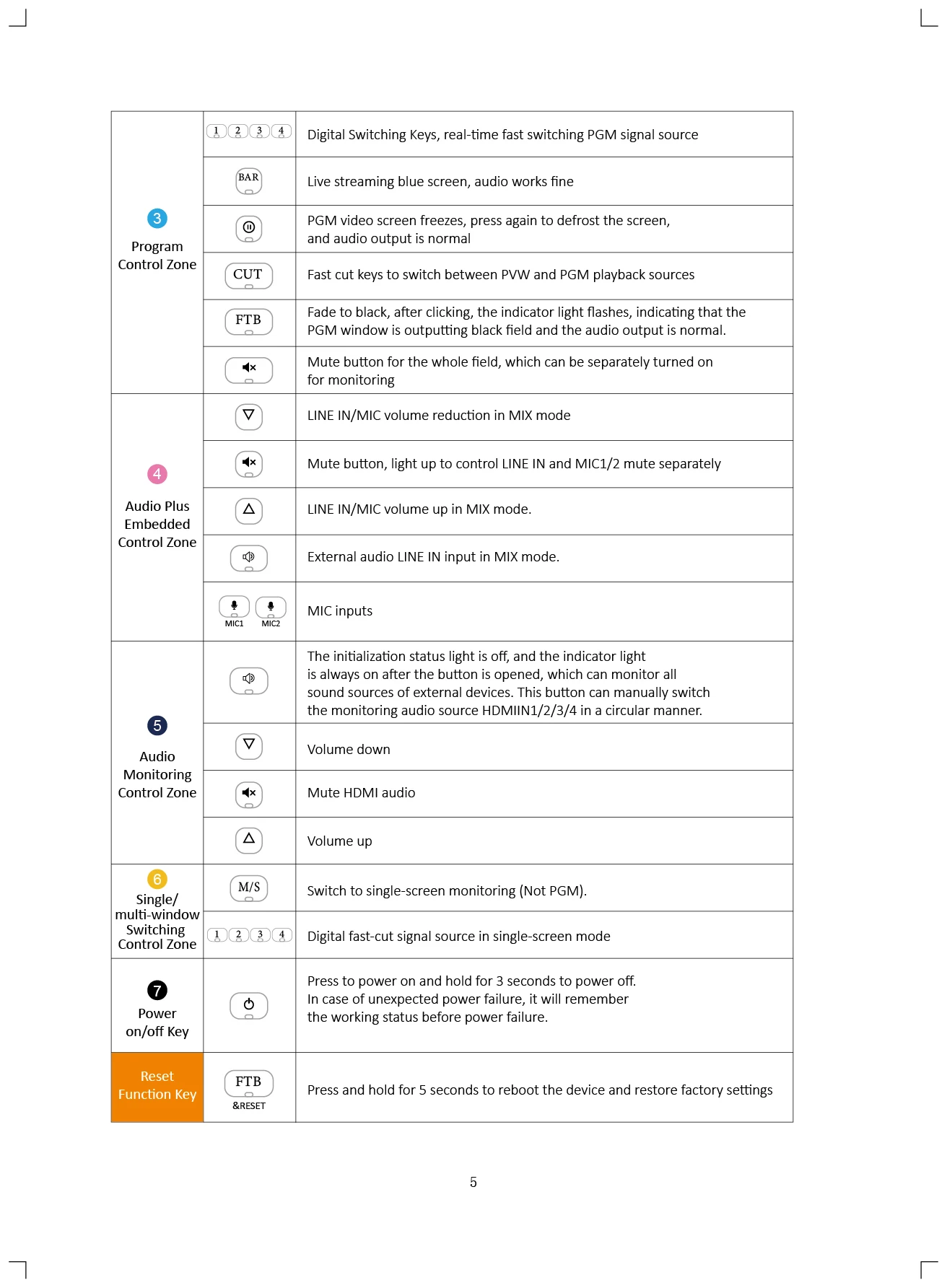

User-friendly Switching
This HDMI Video Switcher is designed with a user-friendly control panel. It supports resolution switching, PGM/PVW/Multi-view switching, and Audio Mixing switching.Three system modes (PIP/AFV/MIX) for real-time live switching. You can seamlessly switch between video sources with the numbered buttons on the front panel.

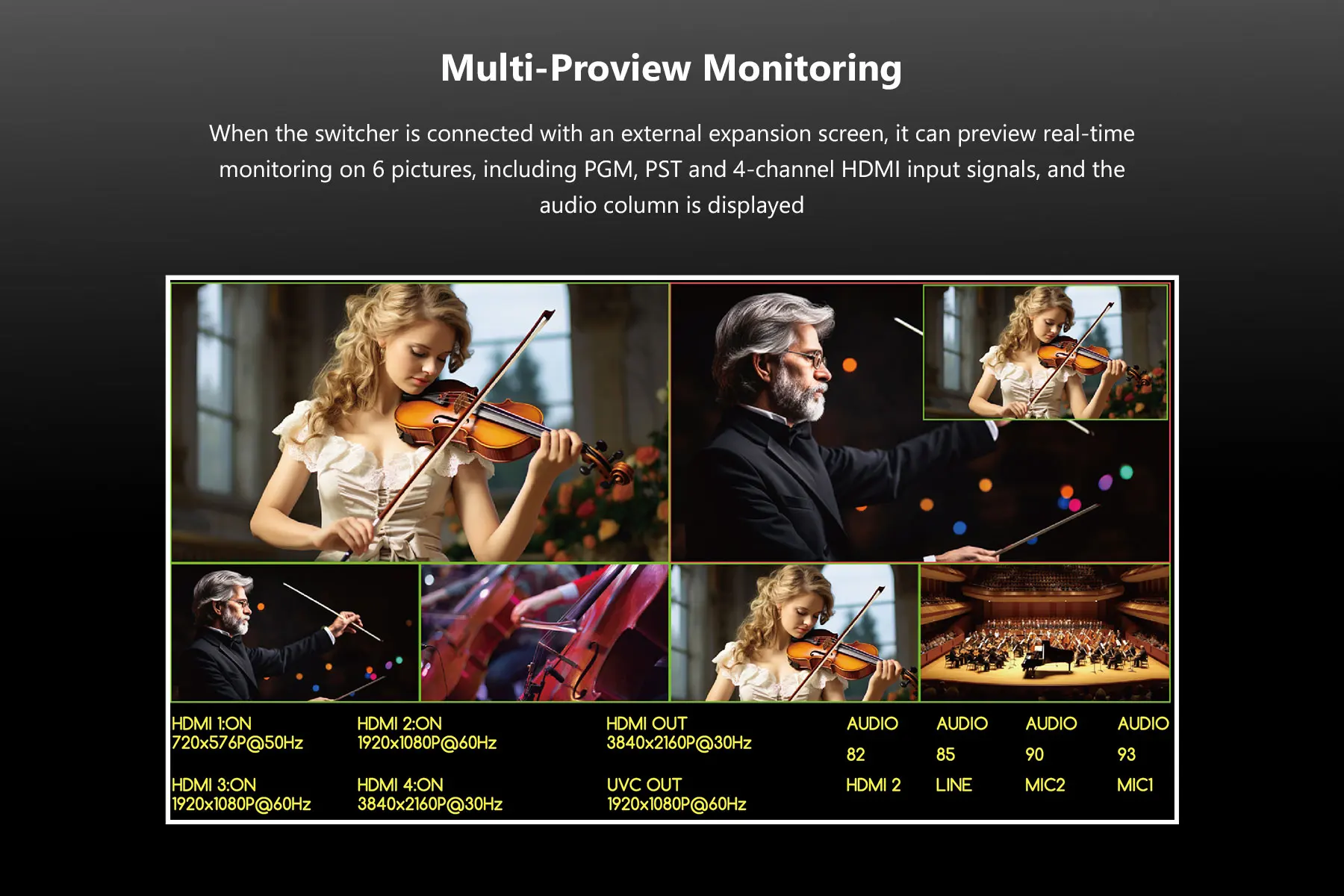

Multi-View Output
This video switcher provides real-time monitor preview of 6 pictures, including PGM, PVW and 4-channel HDMI input signals, and it also displays the audio operation menu. You can select the desired effect via the panel buttons.
Wide Application
Video and audio mixing switchers are ideal for live broadcasts, weddings, churches, business meetings, live programs, broadcasts, sports, concerts, and seminars.
Audio Mixer

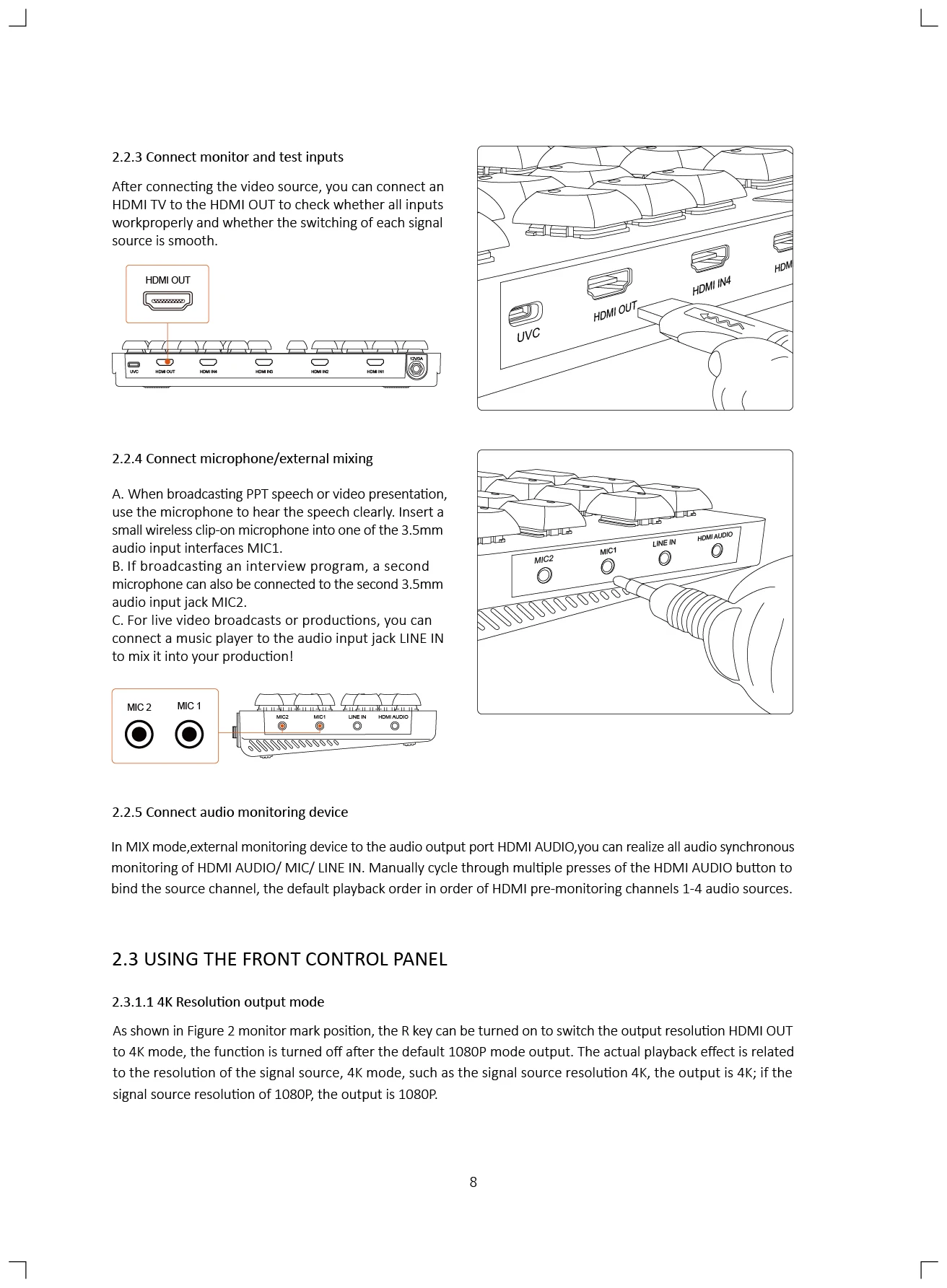

2 x MIC inputs, 1 x 3.5 mm audio input, 1 x 3.5 mm audio output. In MIX mode, all audio and MIC inputs are connected to the audio mixer separately , you can mix all audio sources live and view the audio embedding status at the monitor. Volume can be adjusted at the panel.
